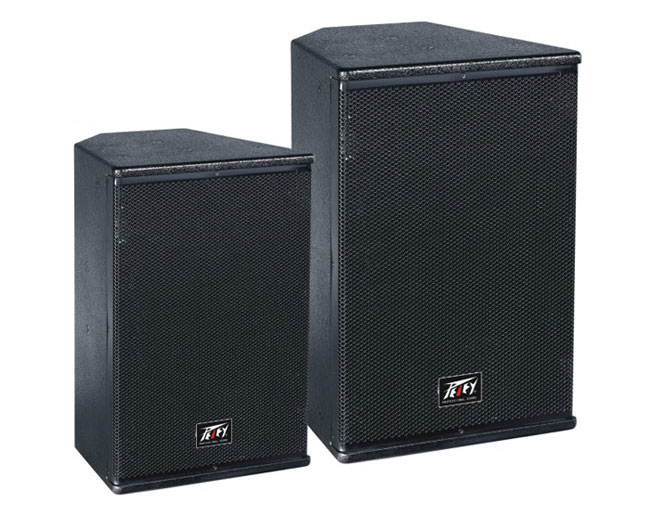

LS係列是我司針對目前對音色、品質要求較高的高檔會所、KTV、多功能廳、會議室等多用途使用環境而設計開發的，結合目前世界音箱開發的先進技術（雙聚焦點雙源技術及箱體抗聚波衍射處理技術）研發的結晶。其特點是體積小、係列全、音域?qū)拸V飽滿、聲音細致柔和、明亮通透。中頻飽滿清潤、質感突出。低音滂湃、厚實、強勁、富具彈性、性價比高、用途廣泛。可以廣泛適用於高檔會所、KTV、多功能廳、會議室、酒吧及小型演出環境使用。 內置D類數字功放模塊。
特點：主體材料 10吋、12寸單元均采用DEL原廠單元。低音可防水耐熱單元
號角采用EV ELX的等同號角（12寸、15寸、雙15）。
獨特的大口徑（35MM的喉口）44芯DEL原廠高音，除保證高音清晰圓潤外還提高了中頻的飽滿程度（高音的頻寬加大了下限可達1KHZ）。
LSseries is our company according to the present of tone color, high quality requirements of the upscale club, KTV, multi-function hall, conference room and multipurpose use environment and design and development, combining the advanced technology of the world speaker development (double focus dual-source processing technology and the body resistance to gather wave diffraction technology) research and development of crystallization.Is characterized by small volume, complete series, full range is broad, meticulous soft voice, bright and transparent.Intermediate frequency full refrigerant, simple sense is prominent.Bass roaring and rushing, thick, strong, rich elasticity, cost-effective and widely used.Can be widely used in high-grade, multi-function hall, conference room, club, KTV bars and small environment use.
Characteristic: the main body material 12 inch 15 inch 18 inch unit adopts DEL original unit.
Horn using EV LX horn equivalent (12 ", 15 ", double 15).
Unique large-diameter core throat (35 mm) 44 DEL original high, in addition to guarantee the high clear round also improve the degree of intermediate frequency of full (high bandwidth increases the lower limit of up to 1 KHZ).
|
技 術 參 數 TECHNICAL SPECIFICATIONS |
|||
|
型 號 |
MODE |
LS-110 |
LS-112 |
|
功 率 |
（W)POWER RATING |
200-400 |
450-900 |
|
阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8 |
8 |
|
高 頻 驅 動 器 |
HF COMPONENT |
44芯*1 |
44芯*1 |
|
低 頻 驅 動 器 |
LF COMPONENT |
10"*1 |
12"*1 |
|
覆 蓋 角 度 |
NOMINAL COVERAGE |
90*50 |
100*60 |
|
靈 敏 度 |
(DB)SENSITIVITY(1W/1M) |
102 |
102 |
|
最 大 聲 壓 級 |
(DB)MAXXIMUM PEAK SPL |
123 |
128 |
|
頻 率 響 應 |
(HZ)FERQUENCY RESPONSE |
50-20000 |
48-20000 |
|
內置D類數字功放模塊 |
(D2)POWER RATING |
400W |
|
